210-V36 Linear Top Drawer

Because the interior drawer is recessed, the length of the drawer box is shorter than the cabinet interior.

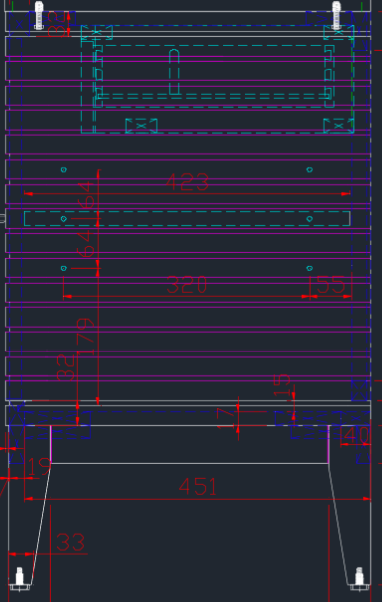

Please see the attached profile image.

 The drawer box is @ 40% shorter than the cabinet, which means the slides are also shorter.

Full extension slides actually only “open” the drawer @ 80% past the cabinet overhang.

 So full depth, less 40% less another 20% and the result is a drawer which appears to extend only @ 45-50%.
